FEATURES

All 304 stainless steel, seamless heli-arc welded construction and signature hi-polished accents
25,000 BTU burners, constructed of 14 gauge 304 stainless steel with lifetime warranty
Delivers consistently perfect results courtesy of the performance engineered 5-Part Grilling System
3/8 inch electro-polished hexagonal grates
Illuminated glass control bezels with high to low Indigo blue indicators
Concealed rotisserie motor provides consistent and uniform rotation of your meat (available without rotis)
Easy-to-open hood assist system makes it easy to open the hood even when juggling plates of food
Multi-position warming/cooking rack
Grilling at night is simplified by the interior lights that illuminate with the motion-activated light switch
Included smoker box for grilling versatility
Utilize the optional charcoal tray accessory (TECT) for additional convenience and versatility
Designed and manufactured in Southern California

SPECS

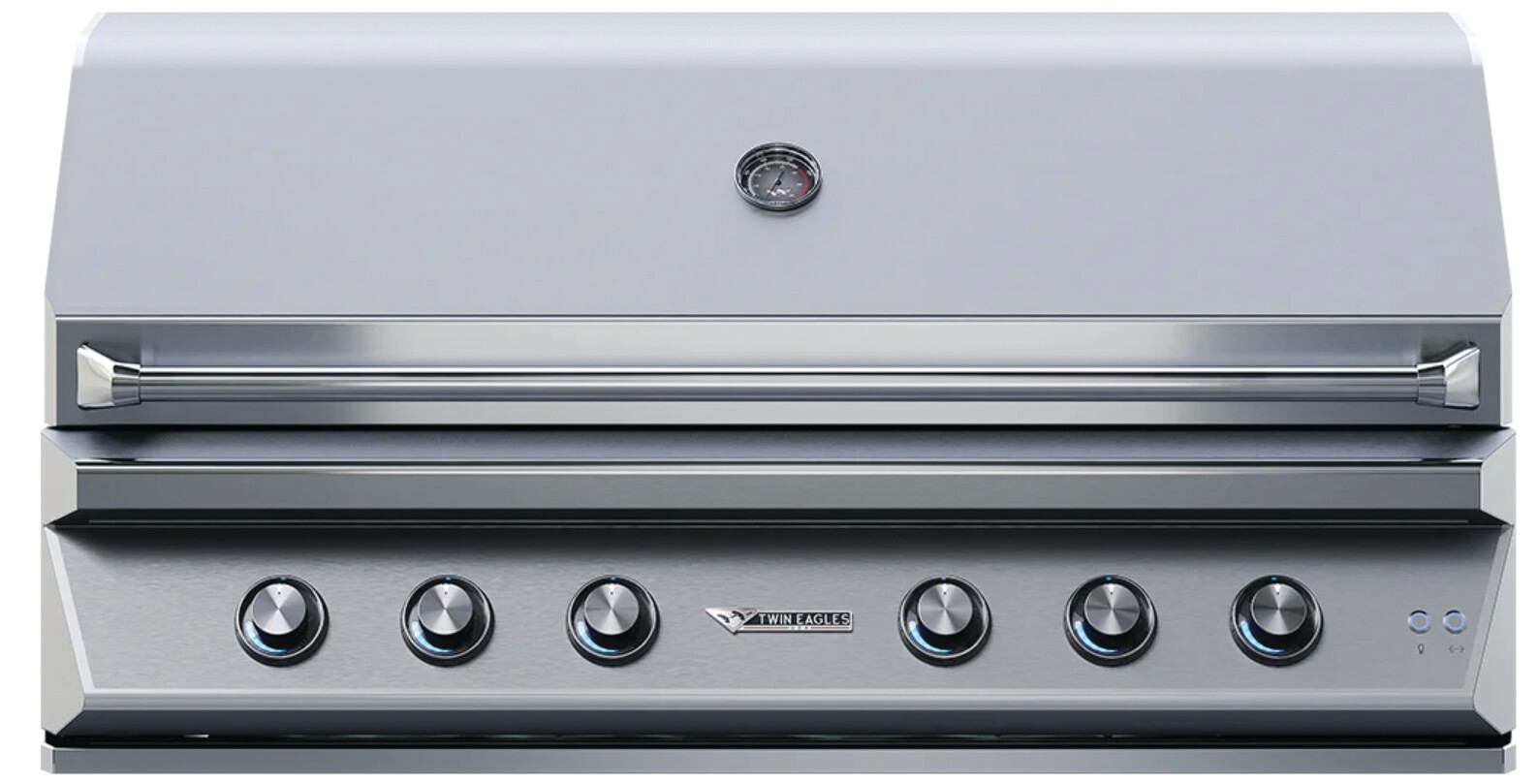

Twin Eagles C Series 54

POWER REQUIREMENTS: Supply 120V, 60Hz, 4A / Service 15 amp dedicated circuit
Power Cord Length 5 feet
Receptacle 3 prong grounding plug
GAS REQUIREMENTS:
Natural Gas or Liquid Propane
Gas Supply 3/4” ID line
Gas Inlet 1/2” NPT female
Total BTU 100,000-128,000
CLEARANCE REQUIREMENTS:
Combustible Requires Insulating Jacket and Minimum 12” all around
Non-Combustible Minimum 2.5” from back, Minimum 6” on sides
CUTOUT DIMENSIONS:
Opening Width 52.25 inch
Opening Height 11.75 inch
Opening Depth 24.25 inch
